  • HE-2150UMA-R

HE-2150UMA-R

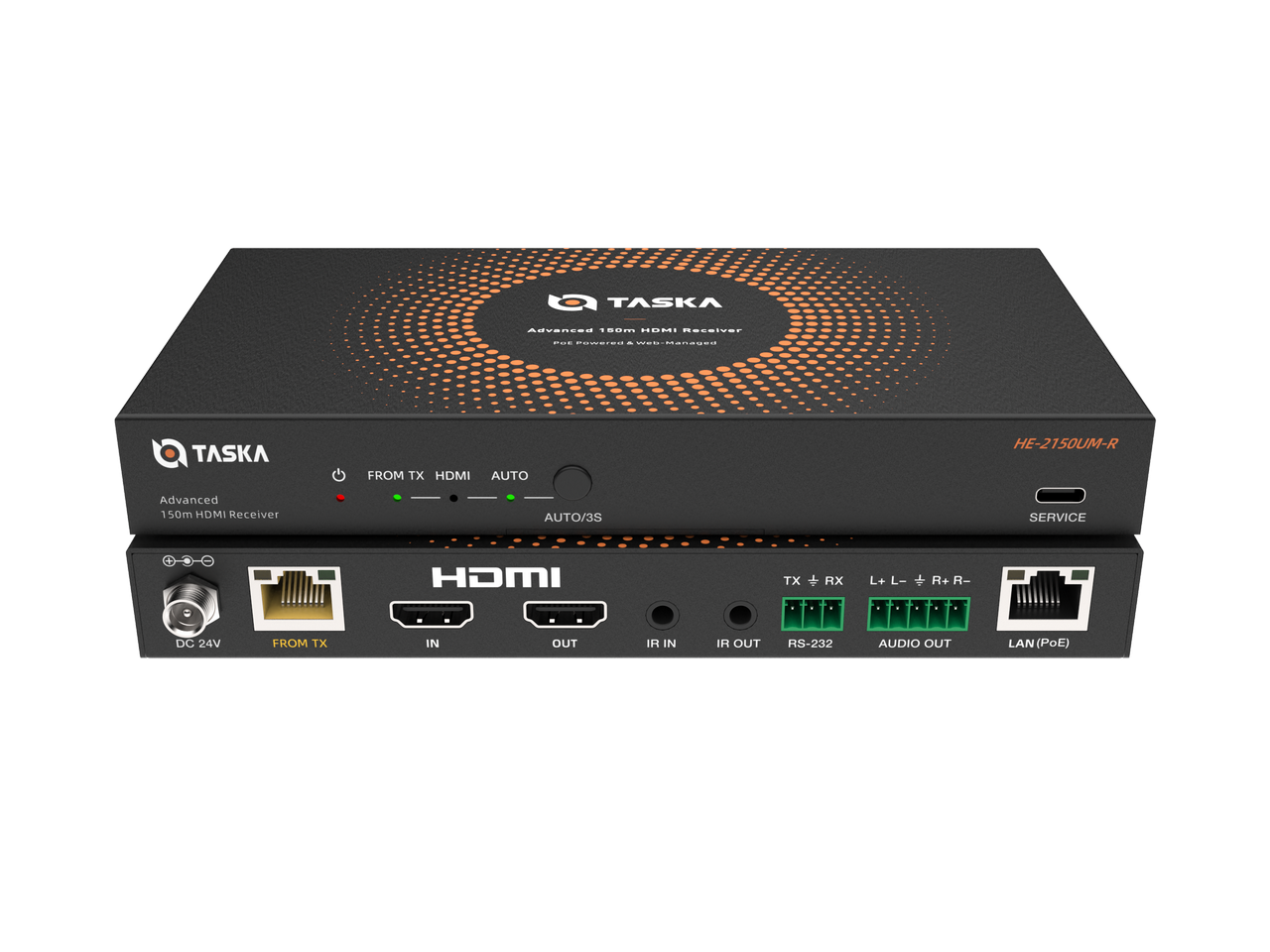

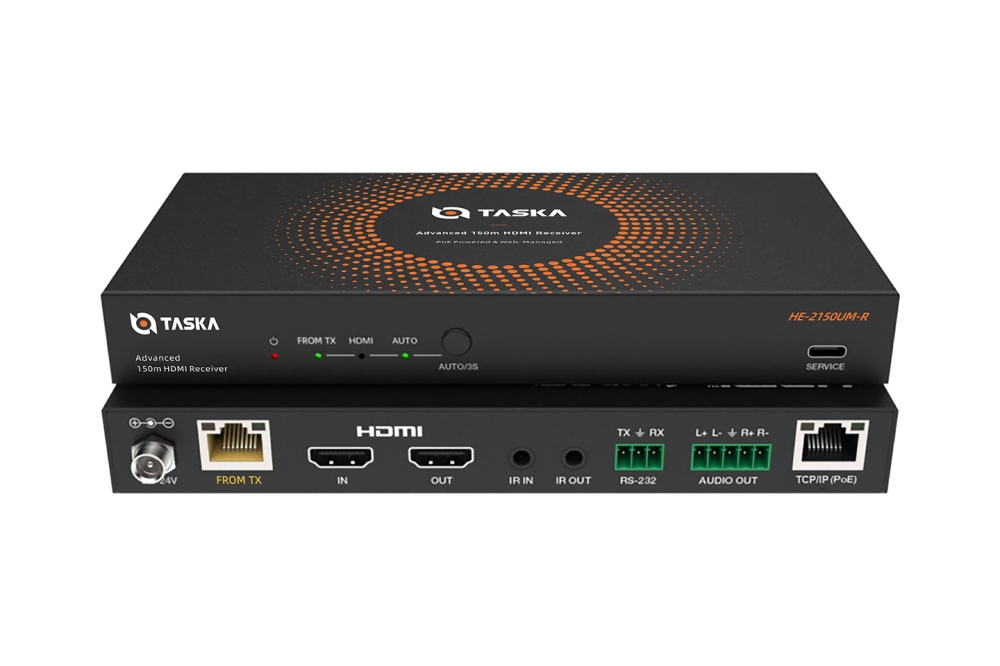

Advanced AES67 150m HDBaseT Receiver

Taska HE-2150UMA-R is a 4K HDBaseT Receiver. It allows you to reliably transmit high-definition audio, video, and control signals over a single CAT6/6a cable. It supports stunning video quality up to 4K@60Hz 4:4:4 and can extend your signal up to 120 meters for 4K content and 150 meters for 1080p content.

Its innovative bi-directional Power over Cable (PoC) design offers superior installation flexibility. This feature allows you to power both units from either the transmitter or receiver side using just one power adapter, simplifying setup and reducing cable clutter.

It offers flexible features like bidirectional IR and RS-232 control for managing your devices from a distance. It also includes advanced audio options such as output to analog stereo or AES67 network which supports 16x8, making it a complete and versatile solution for any home or professional installation.

  • PRODUCT FEATURES
  • SPECIFICATION
  • DOWNLOADS
  • 4K HDMI Network Cable Extender, supports 1080P at a maximum distance of 150 meters and 4K at a maximum distance of 120 meters.
  • Compatible with HDMI 2.0b, HDCP 2.2/HDCP 1.4, and DVI 1.0, with a maximum bandwidth of 18Gbps.
  • The receiver supports one HDBT input and one local HDMI input, with auto-switching (HDMI 5V detection).
  • The receiver supports audio stripping through analog L/R output.
  • Bidirectional IR, RS-232, and CEC pass-through.
  • HDR, HDR 10+, Dolby Vision, and HLG pass-through.
  • AES67 network port supports PoE/PD+ for powering the extender. Support 16x8 Channels.
  • Bidirectional PoC (Power over Cable) functionality.
  • Designed for easy installation.

Datasheet

  • HE-2150UMA-R_Datasheet_EN

Software

  • AES67Controller3_Gui_setup_3.2.1.7-202512252300
