Nexus Series · HDMI + USB solutions

One cable.
Any room-side connection.

NexusH and NexusC endpoints work together across one CAT6a link, extending 5K60 4:4:4 video and 2.5 Gbps USB data for modern meeting rooms.

Explore applications Talk to Taska ↗
5K604:4:4 video
2.5 GbpsUSB data
1 × CAT6aroom link
100 WPD on NexusC-T

Choose the role

Extend the room. Switch the sources.

Nexus brings the table-side interface and wall-side interface into one flexible platform. Select the connection each end of the room needs.

01

Extensions

Carry HDMI, USB-C, video, audio and USB data across one CAT6a link.

02

Switchers

Bring HDMI and USB-C sources into one meeting-room switching workflow.

Extension platform

Choose the interface at each end.

NexusH and NexusC endpoints interoperate, so the source connection and the room endpoint can be selected independently.

NexusH

HDMI + USB

For HDMI sources, displays and USB room peripherals.

HDMI + USB→CAT6a→HDMI + USB
Explore NexusH ↗

NexusC

DP Alt + USB

For full-function USB-C at the meeting table or endpoint.

USB-C→CAT6a→USB-C
Explore NexusC ↗

Mix and match

Build the Nexus link around the room.

Table-side transmitterWall-side receiverBest fit
NexusC-TNexusH-RUSB-C table to HDMI display and USB video bar
NexusC-TNexusC-RUSB-C BYOM to Cisco Bar Mini
NexusH-TNexusH-RHDMI + USB to display and Rally Bar
NexusH-TNexusC-RHDMI + USB source to USB-C endpoint

Application examples

Design the room around the connection.

These diagrams show how Nexus endpoints connect the table, the wall and the meeting peripherals.

01 · USB-C meeting table

One USB-C connection at the meeting table.

Bring charging, display video, room audio and USB camera or microphone data to the laptop through one room link.

Table side
SOURCELaptopUSB-C video · audio · USB data
TRANSMITTERNexusC-TUp to 100 W PD with dedicated PSU
Wall side
RECEIVERNexusH-RHDMI output · USB downstream
Endpoints
DisplayHDMI video + audio
USB video barCamera + microphone

Mixed NexusC-T and NexusH-R pairing lets the table use USB-C while the wall uses HDMI and USB.

02 · Cisco Bar Mini BYOM

Bring your own meeting to Cisco Bar Mini.

Connect a laptop at the table and carry the full USB-C BYOM workflow to the Cisco Bar Mini at the display.

Table side
SOURCEMeeting laptopUSB-C BYOM
TRANSMITTERNexusC-T100 W PD with dedicated PSU
Wall side
RECEIVERNexusC-RFull-function USB-C
Meeting endpoint
Cisco Bar MiniCamera · microphone · display

NexusC-T and NexusC-R keep the BYOM source and conferencing endpoint on one full-function USB-C path.

03 · Ten-person meeting room

Automatic switching for a larger meeting room.

Combine two USB-C laptops, two HDMI sources and a Rally Bar with automatic source selection from the meeting table.

Meeting table
2 × USB-C laptopsFull-function USB-C
2 × HDMI sourcesPresentation inputs
Table processor
SWITCHERNexus42NEO4×2 HDMI + USB-C
Table / wall link
TRANSMITTERNexusH-THDMI + USB over CAT6a
RECEIVERNexusH-RHDMI + USB endpoint
Wall side
DisplayHDMI video
Rally BarUSB camera + microphone

Nexus models

Choose the endpoint for the room.

Extensions

Carry the room connection.

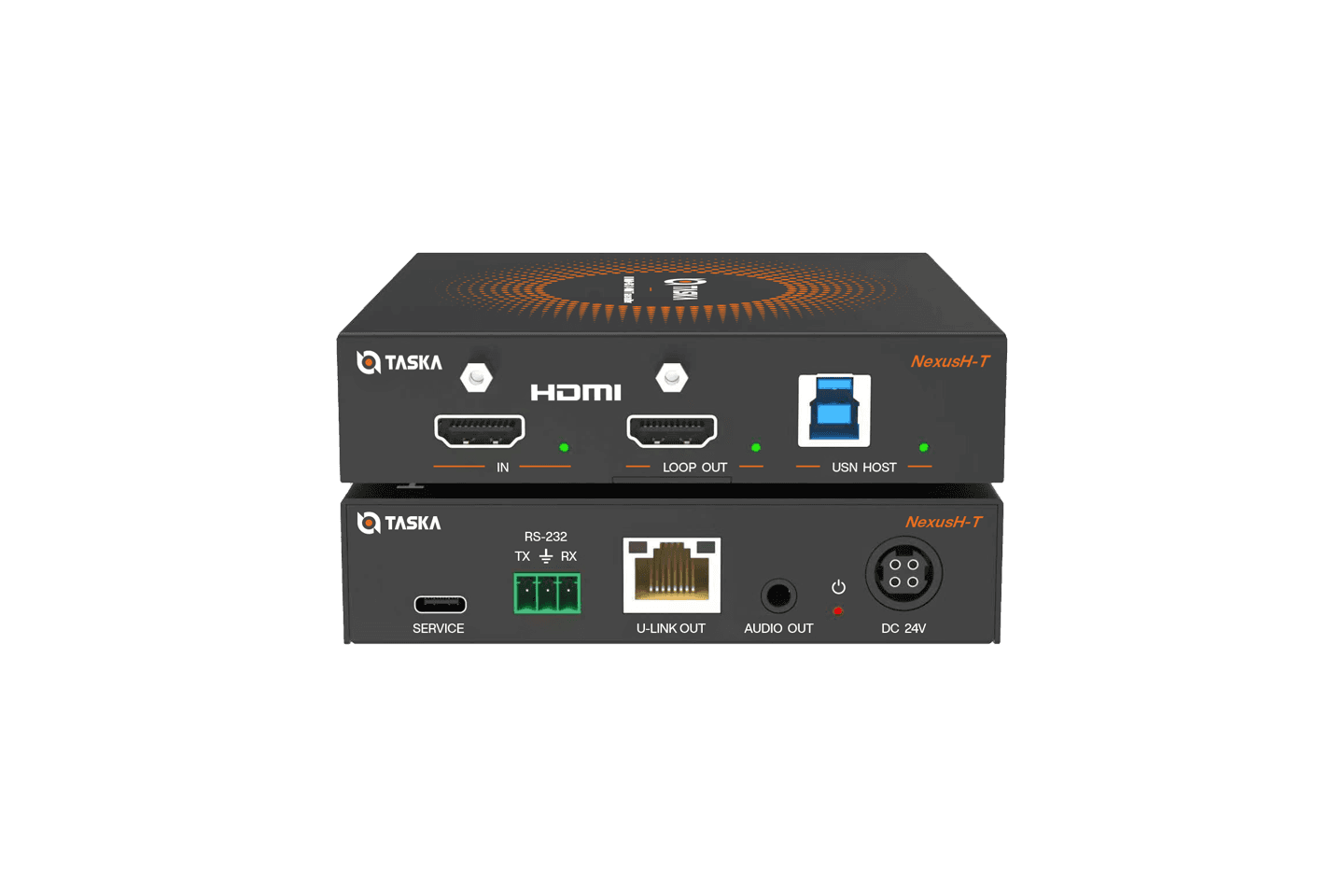

Official Taska NexusH-T product view 1

Extension · NexusH-T

HDMI+USB 40M Transmitter

An HDMI and USB transmitter with HDMI loop output, USB upstream connectivity and CAT6a transport.

  • HDMI input and loop output
  • Up to 2.5 Gbps USB data extension
  • CAT6a signal transport
Explore NexusH-T ↗

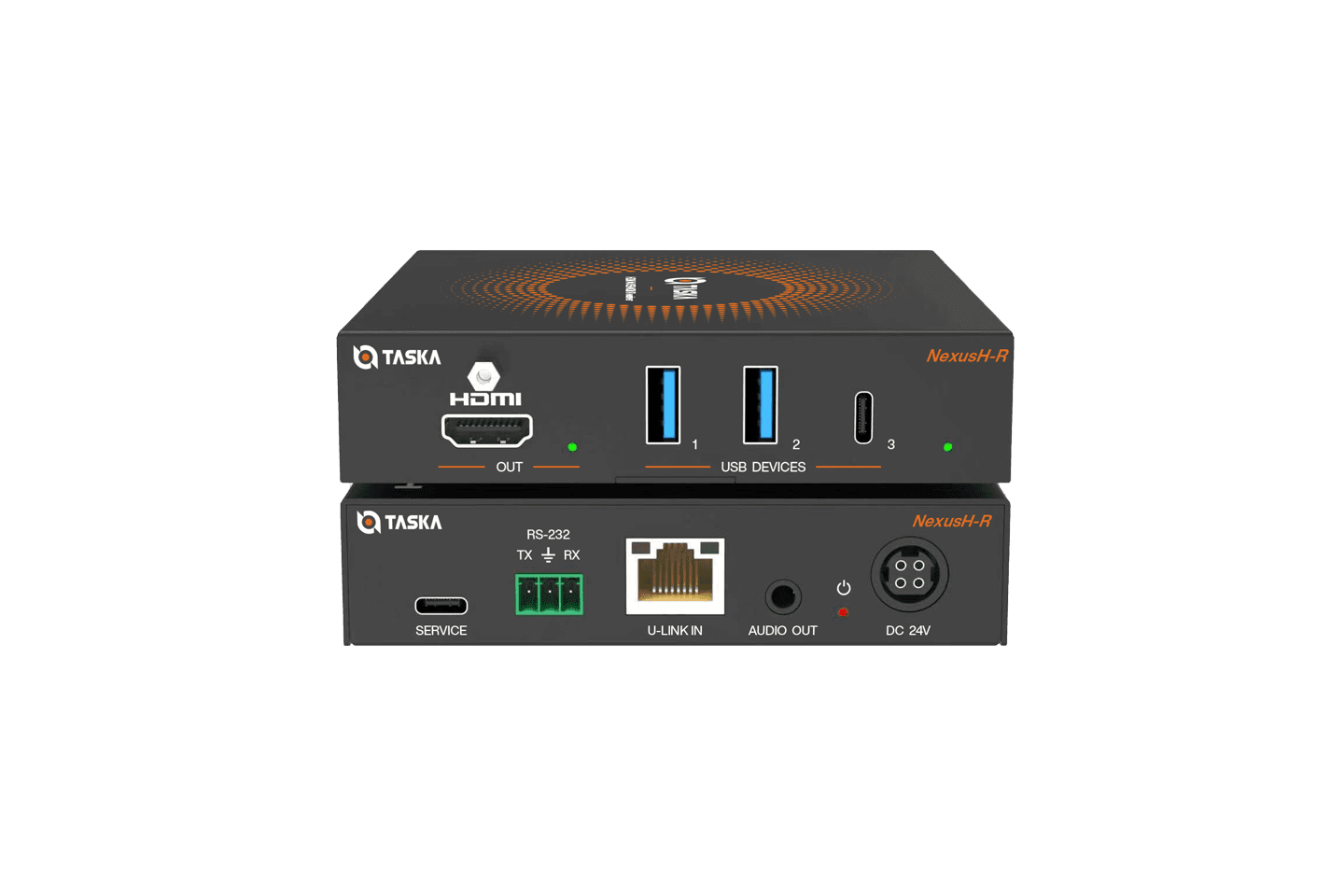

Official Taska NexusH-R product view 1

Extension · NexusH-R

HDMI+USB 40M Receiver

An HDMI and USB receiver with HDMI output, USB downstream connectivity and CAT6a transport.

  • HDMI output
  • Three USB 3.2 downstream ports with up to 2.5 Gbps transport
  • CAT6a signal transport
Explore NexusH-R ↗

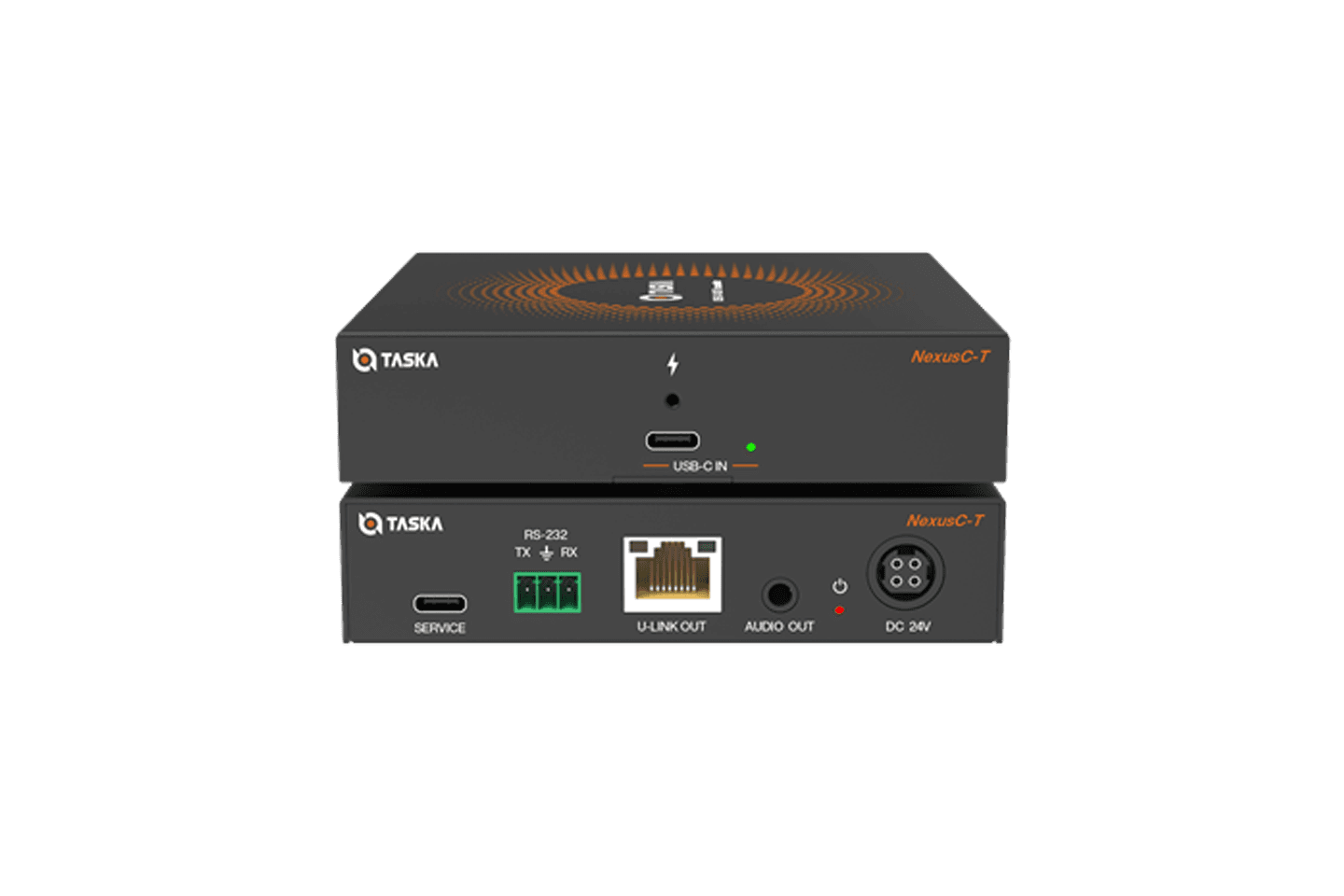

Official Taska NexusC-T product view 1

Extension · NexusC-T

USB-C 40M Transmitter

A full-function USB-C transmitter supporting DP Alt video and 2.5 Gbps USB data extension over one CAT6a link.

  • USB-C DP Alt & 2.5 Gbps USB data extension over one CAT6a link
  • Up to 100 W PD charging (powered transmitter)
  • CAT6a signal transport
Explore NexusC-T ↗

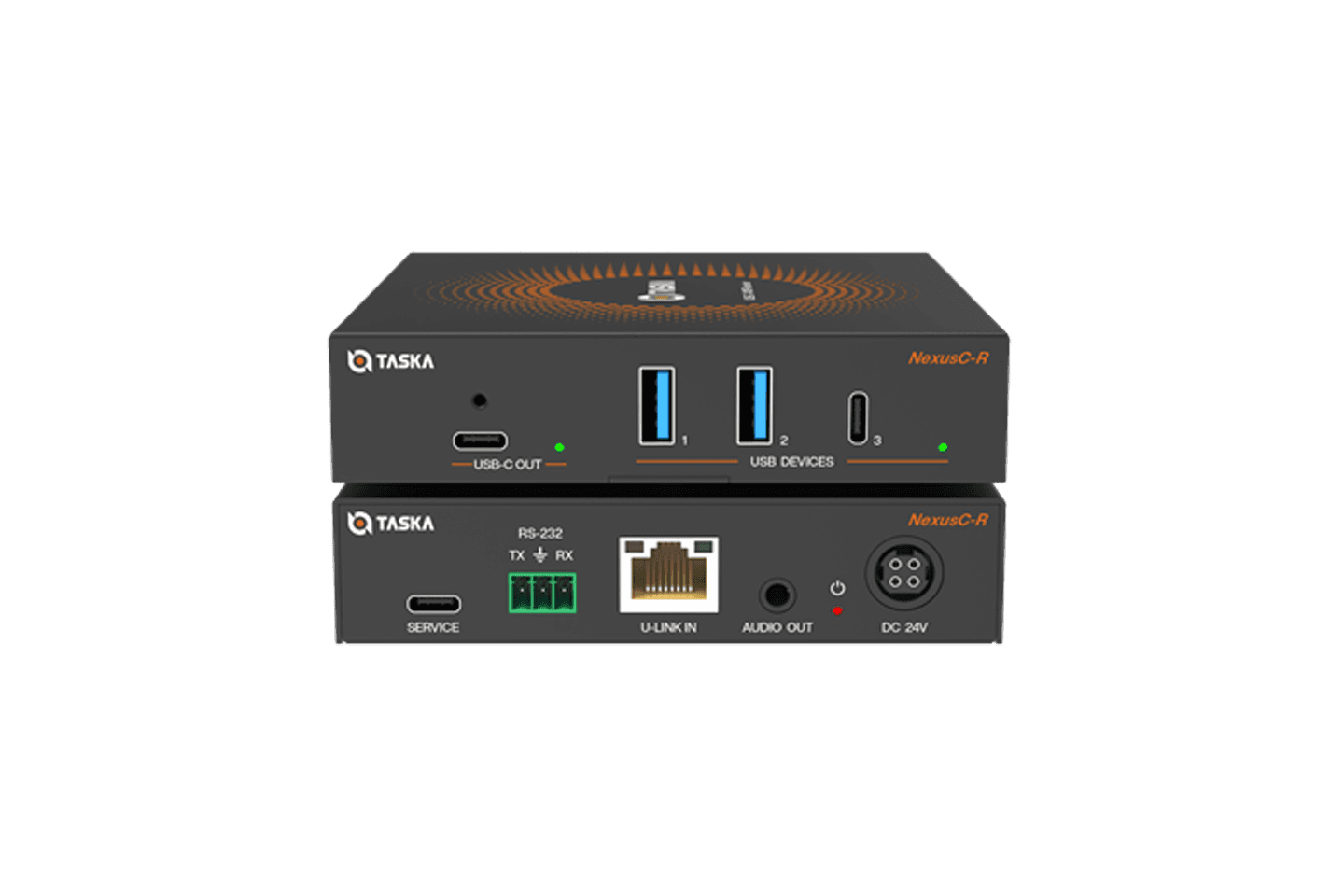

Official Taska NexusC-R product view 1

Extension · NexusC-R

USB-C 40M Receiver

A full-function USB-C receiver supporting DP Alt video and 2.5 Gbps USB data extension over one CAT6a link.

  • USB-C DP Alt & 2.5 Gbps USB data extension over one CAT6a link
  • Audio de-embedding
  • CAT6a signal transport
Explore NexusC-R ↗

Switchers

Bring every source into the meeting.

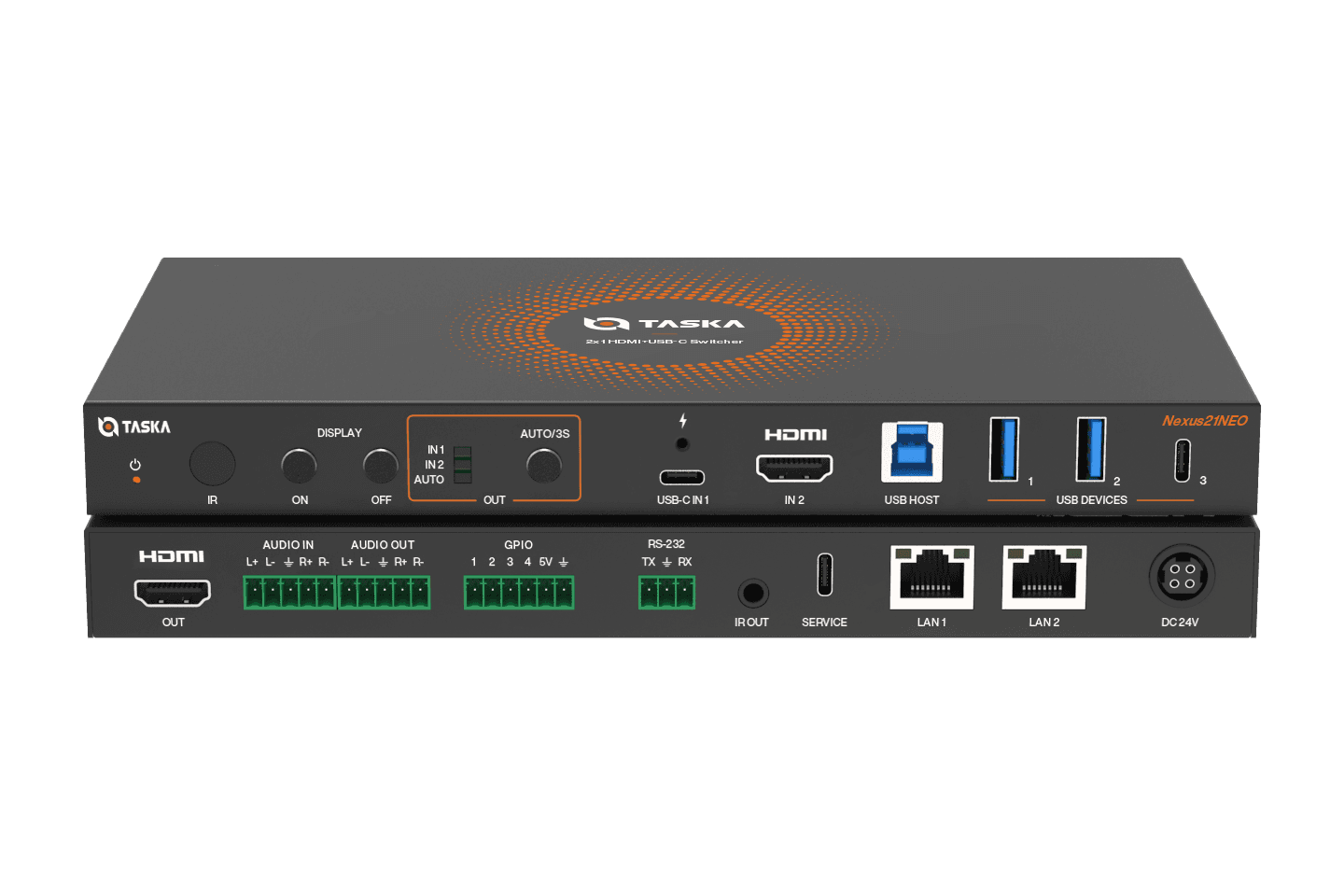

Official Taska Nexus21NEO product view 1

Switcher · Nexus21NEO

2x1 HDMI+USB-C Switcher

An HDMI and USB-C presentation switcher with a local USB hub, analog audio handling and system control.

  • Full-function HDMI and USB-C source switching
  • USB 3.2 Gen 1 host and hub
  • 100 W USB-C power delivery
Explore Nexus21NEO ↗

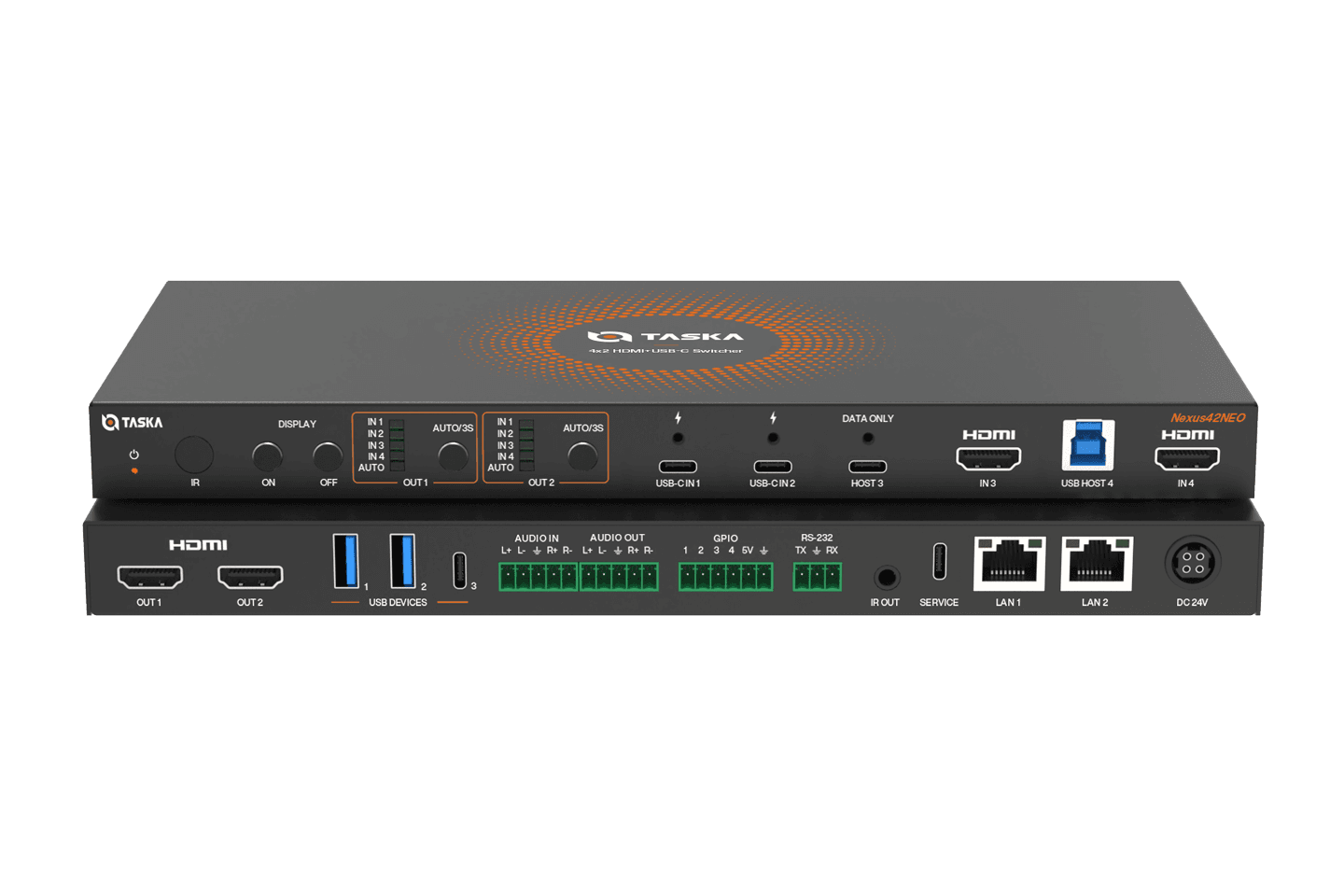

Official Taska Nexus42NEO product view 1

Switcher · Nexus42NEO

4x2 HDMI+USB-C Switcher

An HDMI and USB-C presentation switcher with USB host and hub functions, USB-C power delivery, analog audio handling and system control.

  • Two HDMI and two full-function USB-C inputs
  • USB 3.2 Gen 1 host and hub
  • USB-C power delivery
Explore Nexus42NEO ↗

Model comparison

The connection at a glance.

ModelRoleSource interfaceEndpointVideoUSB dataTransportRecommended application
NexusH-TExtension · transmitterHDMI + USBHDMI loop + USB upstream5K60 4:4:4Up to 2.5 GbpsCAT6aTable-side HDMI + USB
NexusH-RExtension · receiverHDMI + USBHDMI output + USB downstream5K60 4:4:4Up to 2.5 GbpsCAT6aDisplay + USB video bar
NexusC-TExtension · transmitterFull-function USB-CUSB-C DP Alt + USB data5K60 4:4:4Up to 2.5 GbpsCAT6aUSB-C meeting table
NexusC-RExtension · receiverCAT6a transportFull-function USB-C5K60 4:4:4Up to 2.5 GbpsCAT6aUSB-C BYOM endpoint
Nexus21NEOSwitcher · 2×11 HDMI + 1 USB-CHDMI output + USB host4K60USB 3.2 Gen 1LocalSmall meeting room
Nexus42NEOSwitcher · 4×22 HDMI + 2 USB-CHDMI outputs + USB host4K60USB 3.2 Gen 1LocalLarger meeting room

Product resources

Specify with confidence.

Review each model’s datasheet, user manual and command list before finalising the room topology.

Browse Nexus resources ↗
